Industrial yogurt production with Pomac  rotary lobe pumps

During industrial yogurt production it is necessary to convey media with high viscosity. The pumps used must be designed for fluids with these properties. Also important for this application is a hygienic environment, so that the food remains free of contamination. In addition, it should be easy to clean the pumps (CIP/SIP).

Pomac rotary lobe pumps are an optimum solution for this process. They convey the yogurt mass securely, hygienically, and efficiently from one production facility to the next. We will be happy to develop a customer-specific solution for this and similar applications.

Solution

Pomac rotary lobe pumps provide the following benefits for industrial yogurt production:

  • Gentle handling of the yogurt mass, which prevents the quality of the yogurt obtained earlier during fermentation from being lost during conveyance.
  • Complete production with stainless steel prevents any kind of contamination of the yogurt from abrasion.
  • Electropolished surfaces with roughness up to ≤ 0.6 µ are possible
  • Good conveying properties in the case of low- and high-viscosity media with solids (such as pieces of fruit)
  • Very good cleanability (CIP/SIP-capable) thanks to large gap dimensions
  • Easy, time-saving maintenance and disassembly
  • The front-pull-out principle enables all different standard seal options to be accessed from the front and interchanged at any time.
  • Standardized solutions for mechanical seals enable economic stock-keeping of spare parts
  • Custom builds (base plate) and design are possible to meet customer needs or the specific requirements of the application

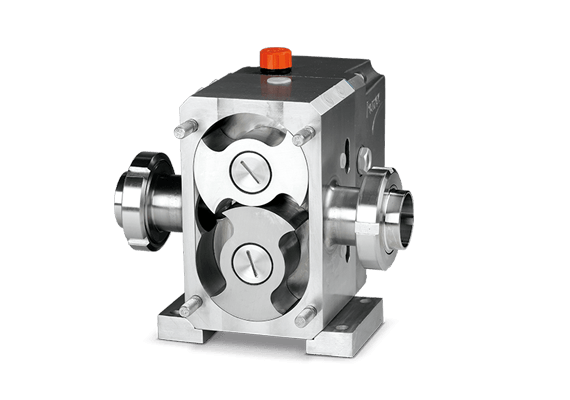

Yogurt production with Pomac rotary lobe pump

Areas of application

Pomac rotary lobe pumps can also promote various other dairy products in addition to yoghurt products, e. g.

  • Cottage
  • Pudding
  • Cheese
  • Butter
  • Whey
  • Cream
  • Sour milk
  • Margarine

Background

The industrial production of yoghurt

The substantial step in the yoghurt production is also called fermentation. In this biochemical process, special bacteria cultures are in use for several hours at temperatures between 40 and 45 °C. The bacteria degrade the milk sugar (lactose) to lactic acid. During this degradation, the proteins congeal and the yoghurt gets its known creamy consistency. This step is followed either by directly filling the natural yoghurt in its packing or by adding fruit pieces to manufacture fruit yoghurt.

In the complete production unit, the yoghurt has to be conveyed under strict hygienic conditions. After the actual production the yoghurt is transferred to the filling station. Also in this phase, in no case plastic residues, microorganisms, germs from the production environment or wear from abrasion should contaminate the perishable food.

To prevent germs in the yoghurt, the milk is pasteurized at 80 °C even before the fermentation. Nevertheless, contamination can occur during the production. Therefore, pumps are needed which fulfil the strict hygienic standards at dairy production and eliminate the danger of contamination from the environment reliably.
