Wilden air operated diaphragm pump

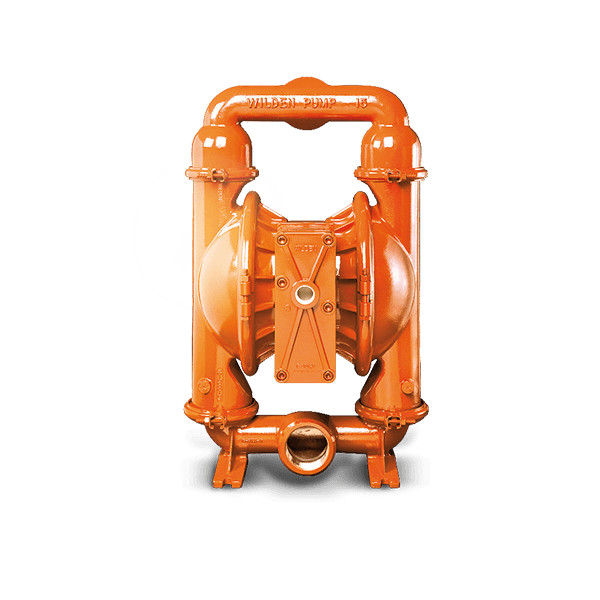

Wilden standard compressed air diaphragm pump

As the inventor of the compressed air-operated double-diaphragm pump, Wilden Pump & Engineering Co. introduced the first pump of this design in 1955.

No other manufacturer of compressed-air diaphragm pumps can draw from so many years of experience. Development of this technology has continued. Today, Wilden has a comprehensive product line. The right solution is always available for general applications as well as for customized requirements.

  • Flow rate max. 70.4 m³/h
  • Discharge pressure max. 8.6 bar

Description

Technology: Compressed air operated double-diaphragm displacement pump

Advantages:

  • Flow rate and pressure variable
  • for shear-sensitive conveyed goods.
  • Metering larger solids
  • Self-priming
  • Dry run safe
  • Infinitely variable control via air volume or pressure
  • Can work against closed slide valve
  • Transportable & immersible
  • Operation and service friendly
  • Temperature limits depending on material from –51°C to 176°C
  • Certificates CE, ATEX, FDA, USDA, 3A, EHEDG  (depending on pump type)

Options

Control systems

Pro-Flo™ technology

The Pro-Flo™ patented air control system has only three moving parts: The asymmetric control piston, the pilot valve and the piston rod/diaphragm unit.

The small surface of the control piston is continually supplied with compressed air, while the larger surface is ventilated or bled via the pilot valve.
An air control system with maximum reliability.

Pro Flo X

The Pro-Flo X air control system is a further development of the proven Pro-Flo and Pro Flo V controls.

With the new type of effectiveness management system (EMS), the Pro-Flo X offers a flexibility that was previously unknown with compressed air diaphragm pumps.

The patented EMS is simple and easy to operate. By turning the EMS adjustment wheel, the metered quantity and air consumption can be adjusted - to the maximum metered quantity or the highest efficiency to reduce production costs. Pro-Flo X delivers a higher energy efficiency and a flexibility comparable to the industry standard, at lower cost.

Accu-FloTM

The Accu-FloTM air control system uses a 2/4-way solenoid valve with a spring-loaded piston. The control of the stroke frequency is done externally via an electrical pulse. The Accu-FloTM pump moves similarly to a conventional compressed air diaphragm pump through alternating presence or absence of a signal.

Designs

Stallion® design

  • Immersible compressed air diaphragm pump for solids containing sludge
  • Pumps can be used without suction line in swampy holes
  • Long service life design for rough applications
  • Solid materials up to 25 mm can be conveyed
  • Compressed air driven, no electricity
  • Carrying handles enable simple transport

BrahmaTM Design

  • Flap valve pump for especially heavy conditions of use
  • 51 respectively 76 mm passage for reliable conveyance of solids containing sludge
  • Long service life, durable design

High pressure design

  • High pressure diaphragm pumps for conveying viscous industrial sludge
  • Filter press charging or general industrial applications
  • Double-acting Duplex technology with 1:3 ratio of drive/pumping pressure
  • No cost-intensive external booster needed to achieve high pumping pressure

Additional options

  • Diverse connection geometries
  • Various housing materials: Cast iron, aluminum, stainless steel, Hastelloy C, polypropylene, PVDF
  • The Wilden muscle: the diaphragms

    1. NBR, Neoprene, EPDM, Viton®, polyurethane, Wil-Flex™, Saniflex™, PTFE

  • Membranes in Ultra-Flex design

    1. Wilden developed Ultra-Flex™ technology with the goal of making Wilden diaphragms the longest- lasting diaphragms on the market. The Ultra-Flex™ technology includes many design ideas which reduce the bending load. The key to a longer diaphragm service life.

  • Sanitary & hygienic design available
  • CIP and SIP capability
  • Accessories

    1. Pulsation damper, diaphragm monitoring, stroke counter, operational monitoring, filter control, solenoid valves, barrel pump set Saniflex™, PTFE

Technical data

Performance overview

Pump type Max. flow rate [l/min]Max. discharge pressure [bar]
1/41/21 1 1/2"2 34
Original1856140348587--8.6
Plastic Advanced TM16.757220454624784-8.6
Metal original1962-3276859181,2118.6
Metal Advanced TM--2124246851,030-8.6

High-pressure version available.

Industries

Oil & Gas
Oil & Gas

Oil & Gas

You can rely on 60 years of experience in the construction of pumps, packages, skids, and systems for onshore and offshore oil and gas production. Take a look at the information now!
Read more

Refineries
Refineries

Refineries

We have been supplying pumps and systems for distillation plants for processing crude oil for 60 years. Ask our experts for more information!
Read more

Petrochemicals
Petrochemicals

Petrochemicals

LEWA provides durable pumps and metering systems for various processes in the petrochemical industry. Ask our experts for more information!
Read more

Chemicals
Chemicals

Chemicals

LEWA supplies you with individual chemical pumps and customized system solutions for various areas of application in the chemical industry.
Read more

Plastics processing
Plastics processing

Plastics processing

LEWA supports you in plastics processing with custom-built plants and systems. Ask our experts for more information!
Read more

Cleaners & Detergents
Cleaners & Detergents

Cleaners & Detergents

We offer reliable, formula-controlled systems for the production of cleaners and detergents. Ask the LEWA experts for more information now!
Read more

Personal Care
Personal Care

Personal Care

LEWA is your reliable partner in the production of personal care products. Our systems meet the strictest quality and hygiene requirements. Take a look at the information now!
Read more

Pharmaceutical, Life Sciences & Biotech Industries
Pharmaceutical, Life Sciences & Biotech Industries

Pharmaceutical, Life Sciences & Biotech Industries

LEWA supplies pumps and systems for the pharmaceutical, life sciences, and biotech industries that comply with all hygienic requirements. We're happy to help you with advice!
Read more

Food & Beverage Industry
Food & Beverage Industry

Food & Beverage Industry

Use LEWA pumps and system solutions for your homogenization processes in the food and beverage industry. Ask our experts for more information!
Read more

Energy Utilities
Energy Utilities

Energy Utilities

We supply pumps and systems for power plants and power suppliers. Find out more about LEWA system solutions for the energy utility industry.
Read more

Applications

Wilden standard compressed air diaphragm pumps are particularly ideal for challenging applications involving solvents, acids, pickling fluids or high viscosities.
