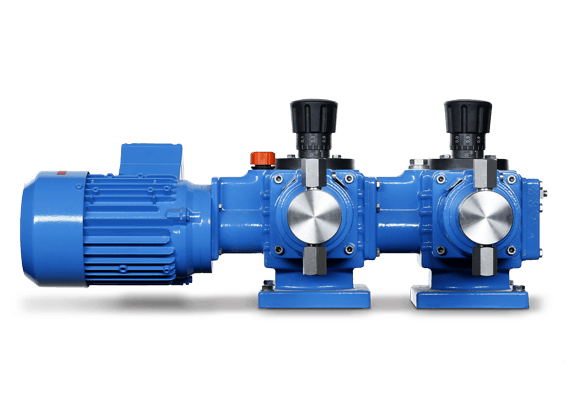

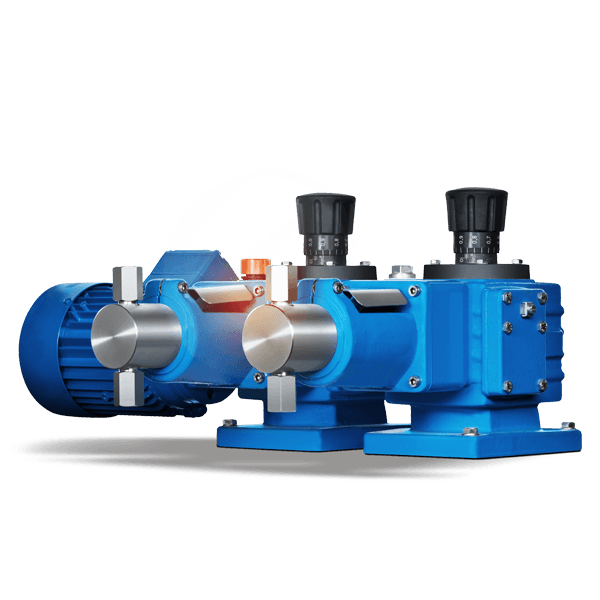

LEWA ecoflow packed plunger metering pump

LEWA ecoflow®
packed plunger metering pump

Its sophisticated modular system makes the LEWA ecoflow packed plunger metering pump the cost-efficient option for pumping fluids.

For the LEWA ecoflow packed plunger metering pump, the pumping fluid is displaced directly by the plunger. This means plunger and plunger seals come into direct contact with fluid. With this technology, we provide you a cost-effective solution for easy metering tasks with a flow rate of up to 9 m³/h per pump head and a discharge pressure up to 500 bar.

LEWA ecoflow®packed plunger metering pump
The cost-efficient alternative for simple metering tasks.

It does not always have to be expensive: In many cases, the use of complex diaphragm metering pumps is not cost-effective when pumping simple fluids. Therefore, we provide the LEWA ecoflow packed plunger metering pump as a cost-efficient alternative.

Therefore, for metering non-critical fluids, such as water or resin, it is advantageous to rely on a simple and robust pump with low acquisition and operating costs.

Despite lower costs, we of course provide you with the tried-and-tested LEWA quality: Each ecoflow packed plunger metering pump is produced in Germany, where it goes through all stages of quality assurance. Of course, we also rely on the tried-and-tested modular system with various pump heads, drive units and motors.

LEWA ecoflow packed plunger metering pump

Good reasons for a LEWA ecoflow® packed plunger metering pump

The LEWA ecoflow is a hydraulically actuated packed plunger metering pump that provides numerous advantages over comparable pumps.

Suction capability

Unique suction capacity

The LEWA ecoflow packed plunger metering pump differs from other pumps due to its unique suction capacity. With an absolute suction pressure of up to 0.1 bar, it not only provides a wide array of safe installation options. The operating costs for the entire system can also be lower than with comparable pumps.


Cost effectiveness

Economical solution for simple tasks

Through the simple but robust plunger technology of the pump head, the ecoflow packed plunger metering pump is the ideal pump for easy metering tasks with non-critical fluids. In addition, it features particularly high energy efficiency and is low maintenance.


API Standard

API 675 standard

The ecoflow series fulfills the internationally valid quality standard of the American Petroleum Institute API 675. In this standard, all requirements for a displacement pump in industrial settings are defined with respect to design, construction and performance. We would be happy to present you with further certifications, if desired.


High-quality materials

All pump parts in direct content with the fluid are made from high-quality materials. Plungers, for example, are made from ceramic oxide.

Worldwide standards

When designing pumps, we adhere to globally valid standards such as VDMA 24284, 24286‐10 and FDA guidelines.

Tried-and-tested plunger seal

The LEWA ecoflow packed plunger metering pump uses the tried-and-tested LEWA plunger seals for maximum tight sealing.

Options

Multiplex capability

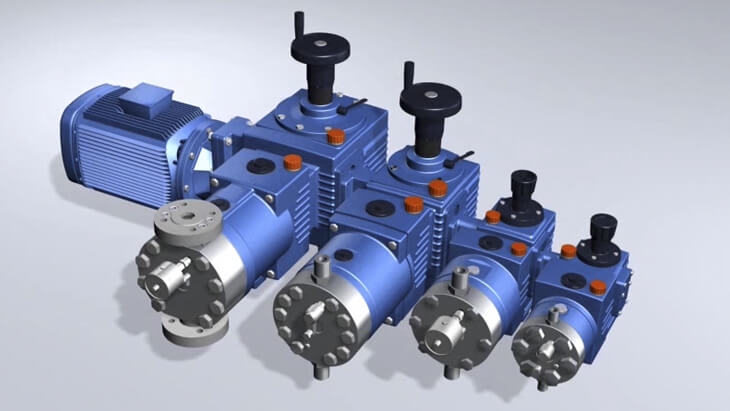

Single drive units with vertically installed motor are space-saving. Alternatively, multiple drive units with identical or different output can be combined for pulsation reduction or recipe metering.

Customized valves

LEWA uses numerous special types of valves such as specially hardened valves for liquified gases or valves with minimal dead space for the food and pharmaceutical production.

Heating and cooling jacket

With heating and cooling jackets, our pumps are suitable for almost any temperature and can convey fluids at low temperatures or extreme heat.

Diverse connection geometries

Our pumps are equipped with all common connection geometries such as DIN standard, BASF's high-pressure standard, American ANSI, JIS, or your individual requirements. Customized configurations are possible.

Plunger seal with flushing possibility

In order to guarantee a long-life pump and leak-free operation, our pumps have a flushable plung seal. Thus, leaks are removed easily and safely.

Diagnostic connection

Our pumps and systems have connections that facilitate the diagnosis of their performance. This is done by a service technician on site or via remote monitoring.

Integration into process control systems

The signal acquisition of process control systems is achieved analogously or digitally. Flow rate is adjusted via electric or pneumatic stroke adjustment, alternatively by motor drive (FU).

Intellidrive technology

Using the highly-dynamic servomotor, you can adjust the stroke of the pump to the requirements of your system and your process.

Special design materials

If the process demands it, wetted parts such as pumps heads and valves will be made of special materials such as stainless steel 316/316L (1.4401/1.4404), Hastelloy or Duplex steel and PVC.

Product range

With a selection of various pump heads, the LEWA ecoflow plunger metering pump covers a large performance spectrum. This allows us to provide you with a high-performance, energy-saving pump for any desired application.

Drive unit data

Type Stroke length [mm] Plunger rod force [N]
LDB 15 2000
LDC 15 5000
LDD 30 7000
LDE 30 20000

Performance overview

Performance overview LEWA metering pumps

Installation dimensions

Save space and weight through multiplex arrangement of pumps or arrangement in the compact boxer design. Meter multiple liquids at the same time with various pump heads.

Installation dimensions

Type L [mm] B [mm] ΔB [mm] H [mm]
LDB 400 400 185 260
LDC 450 500 220 320
LDD 700 750 280 610
LDE 800 900 350 690

Installation dimensions

Assembly dimensions LEWA ecoflow

Pump head variants

We provide various pump heads for different applications. Here, the spectrum ranges from all-purpose variants to special designs for high temperatures, pressures or aggressive fluids.

Pump head K110/K111

Standard pump head with single gland for pressures up to 160 bar.

Type K110/K111
Pressure 160 bar
Flow rate 9 m³/h
Temperature -70/+400 °C
Viscosity 1.500.000 mPa∙s
Operational capability Can be installed on all ecoflow pumps ≥ LDE.

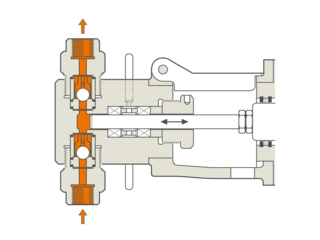

LEWA piston pump head
LEWA pumphead K

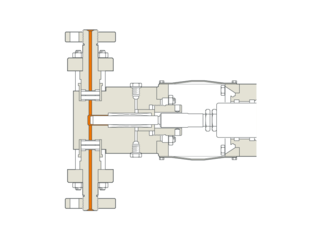

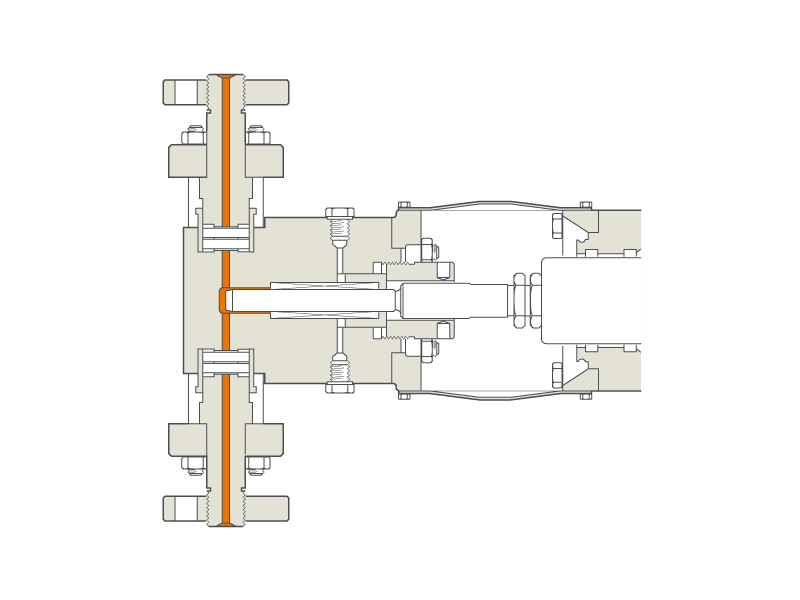

Pump head K210/K211

High-pressure pump head with double tensioned gland packing for pressures up to 500 bar.

Type K210/K211
Pressure 500 bar
Flow rate 9 m³/h
Temperature -70/+400 °C
Viscosity 1.500.000 mPa∙s
Operational capability Can be installed on all ecoflow pumps ≥ LDE.

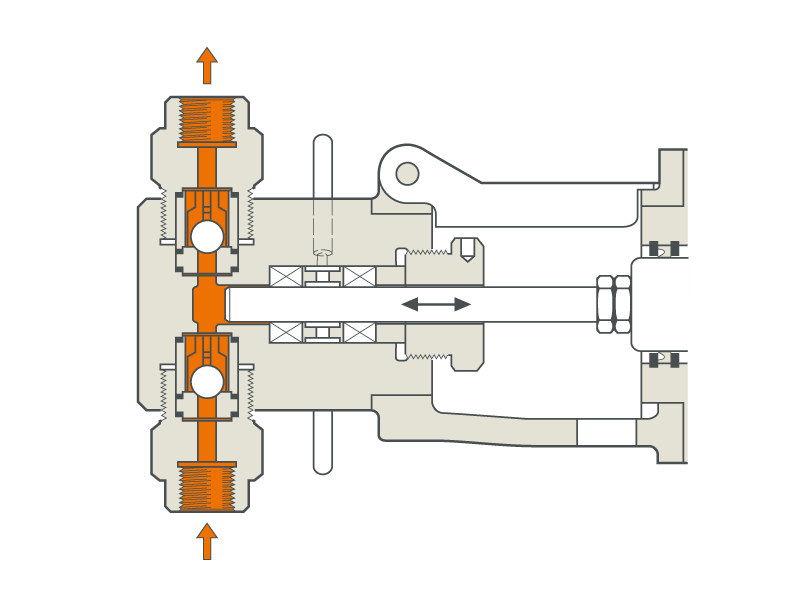

LEWA piston pump head
LEWA pump head K211

Pump head K511

Custom design with total heating jacket for melts.

Type K511
Pressure 176 bar
Flow rate 1,5 m³/h
Temperature -20/+150 °C
Viscosity 100.000 mPa∙s

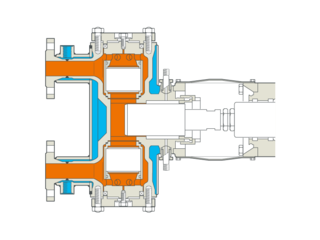

LEWA pumphead K

Special pump heads in remote head design

Some tasks in process engineering include the metering or circulation of media with critical properties like high temperature and high abrasivity. These critical conditions frequently need to be kept away from the displacer system of the metering pump, either to protect the system or its operating personnel. A normal metering pump is not suitable for such tasks due to its compact design.

Type MR / MV / KV
Pressure 500 bar
Flow rate 19 m³/h
Temperature -70/+400 °C
Viscosity 100.000 mPa∙s
Operational capability Remote pump heads can be installed on all LEWA ecoflow metering and process pumps and on all LEWA triplex metering and process pumps.
LEWA pump head M900

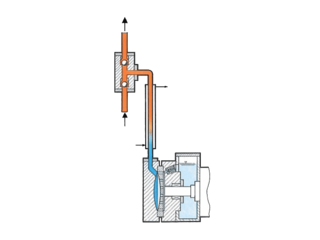

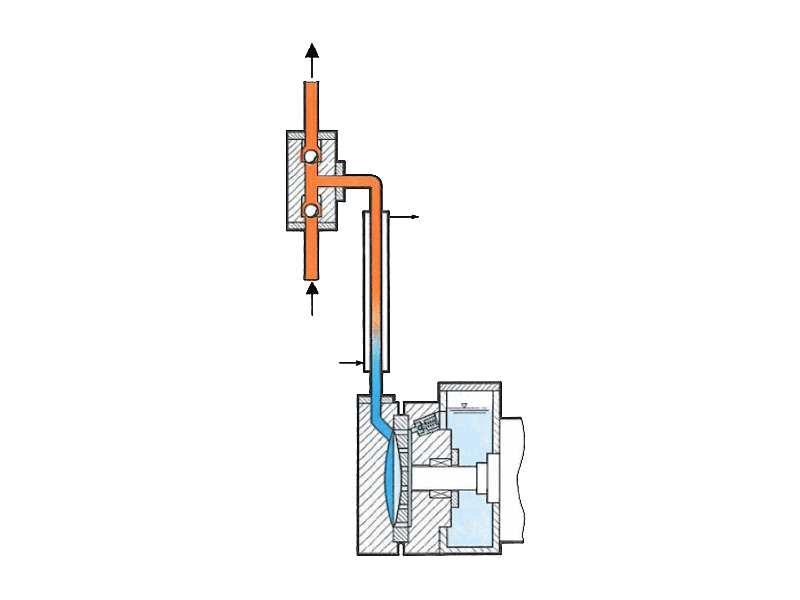

LEWA diaphragm remote head cutaway
